| DCFAT. Power Supply for X-Ray Generation (Clinical Applications) | ||
| PROJECT INFORMATION |
 |
|
| Funding Entity: | SUINSA | |
| Partners: | SUINSA, Universidad de Oviedo | |
| Contract Period: | 01/02/2000 - 01/02/2001 | |
| Total Budget: | 18,000€ | |
 |
||
| TECHNICAL SPECIFICATIONS | ||
| Equipment: | AC/DC Converter | |
| Output Voltage: | 50 kV - 150 kV | |
| Output Current: | 10 mA - 640 mA | |
| Switching Frequency: | 75 kHz (max.) | |
| Output Power: | 50 kW (max.) | |
| Output Ripple: | 3% (max.) | |
 |
||
| MAIN FEATURES | ||
|

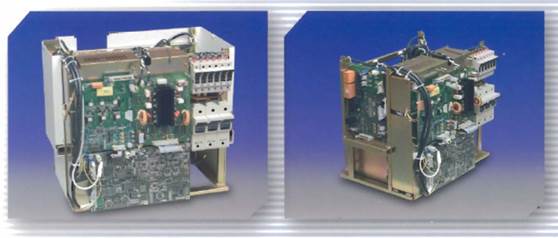

AC/DC power supply for an X-Ray generator meant to be used in medical applications. Severe specifications for settling time and also size (similar to that of a PC). The power stage is based on a resonant converter that uses IGBTs as switches. The reactive elements required are achieved through a careful transformer design. This work gave rise to a Patent: WO2007/ 141349 A1. |
||
