| MULTIX. New Topologies and New Transformer Structures for High-Power, High-Output-Voltage Power Supplies | ||
| PROJECT INFORMATION |
 |
|
| Funding Entity: | Spanish Ministry of Education and Science | |
| Partners: | Universidad de Oviedo | |
| Contract Period: | 01/10/2006 - 30/09/2009 | |
| Total Budget: | 79,618€ | |
 |
||
| TECHNICAL SPECIFICATIONS | ||
| Equipment: | AC/DC Converter | |
| Output Voltage: | 50 kV to 150 kV | |
| Output Current: | 0.5 A (max.) | |
| MAIN FEATURES | ||
|

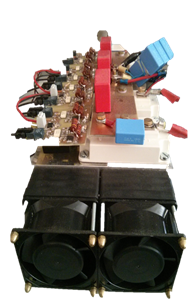

The project deals with new solutions for high-voltage (more than 50kV), high-power (from 10kW to 150kW) DC power supplies. Different structures of inverters were studied to minimize component count and power losses. In the end, a multilevel topology was proposed, modelled and experimentally evaluated. The materials and the structure of the step up transformer were also considered. A method to calculate the transformer parasitics was tested and validated. A Ph.D Thesis was developr based on this project: “Solutions for Fluoroscopy” by Óscar Pardo Vaquero. |
||
